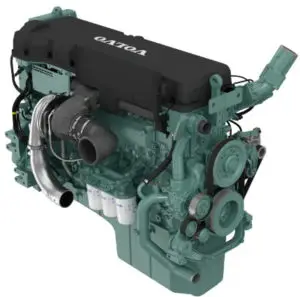

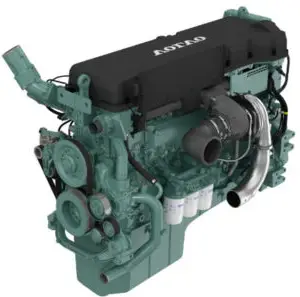

TAD1650VE-B is a powerful, reliable and economical Off-road Diesel Engine built on the Volvo in-line six concept.

LOW COST OF OWNERSHIP

World class fuel efficiency, high uptime as well as low cost of ownership.

COMPACT & SIMPLE INSTALLATION

As optional equipment all material needed in order to install the engine can be ordered from Volvo Penta. Installation guidelines as well as drawings and CAD models are easy to access. The result is an engine that is easy to install with minor impact on existing machine layout.

DURABILITY & LOW NOISE

Long experince with base engine development reduces risk of downtime. Well-balanced to produce smooth operation with low noise.

POWER & TORQUE

Maximum power and torque available at low rpm. As a result noice as well as fuel consumption is very low. Useful engine speed for the TAD1650VE-B is due to power and torque layout very flexible.

LOW EXHAUST EMISSION

Efficient injection as well as robust engine design in combination with internal EGR contributes to excellent combustion and low fuel consumption.

EASY SERVICE & MAINTENANCE

Easily accessible service and maintenance points contribute to the ease of service of the engine. As optional equipment possible to remote mount filters and service points.

Proven and straight-forward design – built on Volvo Group technology
Low cost of ownership and operation
High power and torque already at low engine speed
Compact, simple installation and easy to service
Similar engine footprint for all emission standards
High sulfur-in-fuel tolerance
Wide range of optional equipment

TECHNICAL DESCRIPTION

ENGINE AND BLOCK

Cast iron cylinder block
Wet, replaceable cylinder liners
Replaceable valve guides and valve seats
Overhead camshaft and four valves per cylinder

LUBRICATION SYSTEM

Full flow disposable spin-on oil filter, for extra high filtration
Gear type lubricating oil pump, gear driven by the transmission
Oil level sensor at startup

FUEL SYSTEM

Electronic high pressure unit injectors
Fuel prefilter with water separator and waterin-fuel indicator / alarm
Gear driven low-pressure fuel pump
Fine fuel filter with manual feed pump and fuel pressure switch

COOLING SYSTEM

Available as power pack or base engine.
Belt driven coolant pump with high degree of efficiency

TURBO CHARGER

Electronically controlled Waste-gate

ELECTRICAL SYSTEM

Engine Management System (EMS) 2.3, an electronically controlled processing system which optimizes engine performance. It also includes advanced features for diagnostics and fault tracing.
The instruments and controls connect to the engine via the CAN SAE J1939 interface. Options available for engine control equipment.

EXHAUST REDUCTION SYSTEM

With internal EGR
